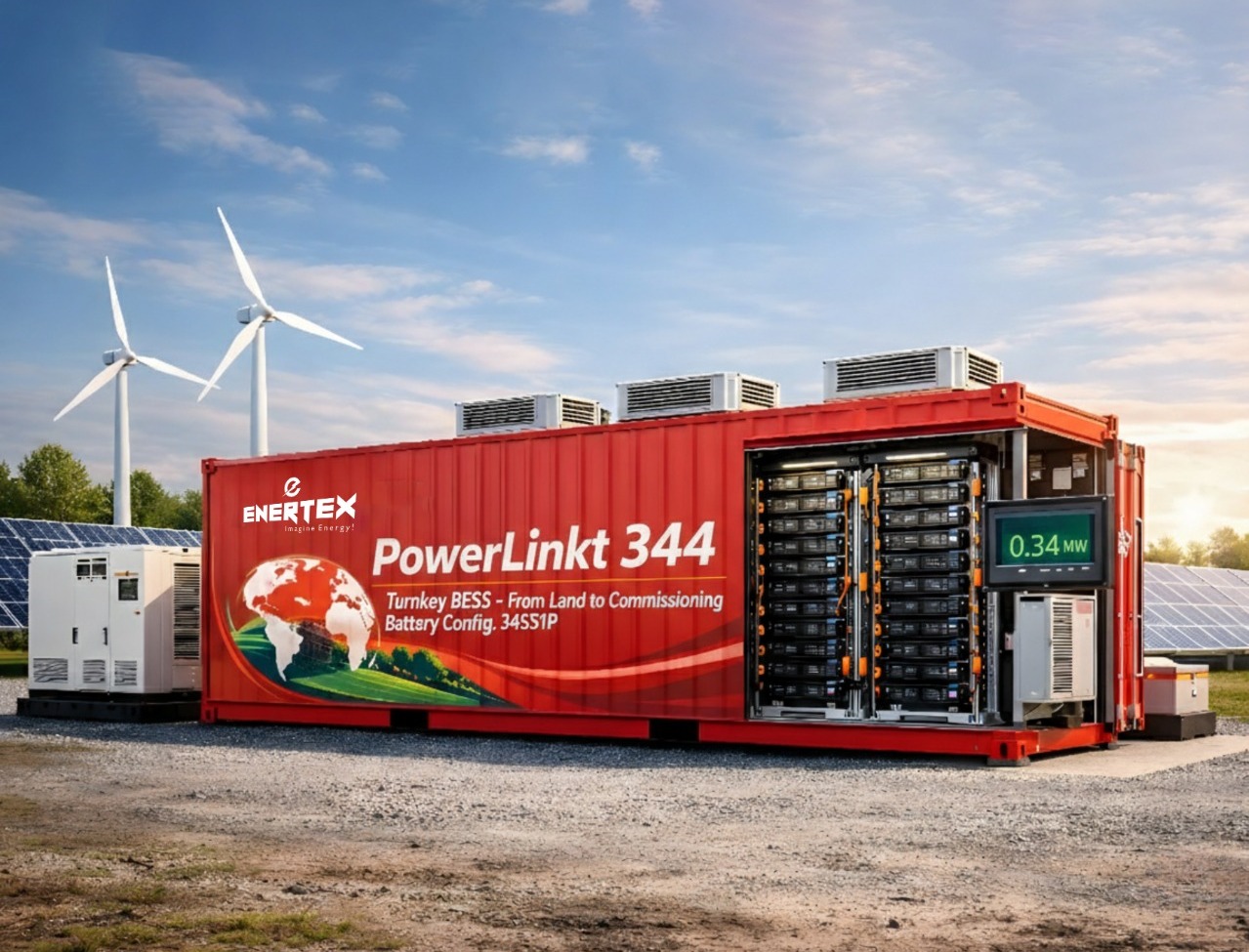

Enertex PowerLink 344

Enertex PowerLink 344

Power Link 344 is a reliable energy storage solution designed for commercial and industrial power applications. Developed with advanced lithium battery technology and an intelligent energy management system, it delivers stable power performance, enhanced operational safety, and long-lasting reliability. Engineered for efficiency and durability, Power Link 344 enables optimized energy utilization, consistent power output, and seamless integration with modern energy systems.

SPECIAL BATTERY PARAMETERS
Communication Interface RS485, Ethernet, IoT
Control & Communication SCADA for Central control & monitoring Communication: Standard industrial protocols
Fire Suppression System Temperature & Smoke Detector, Aerosol, Water Fire Interface
Protection Class (IEC 60529) IP55
Anti-Corrosion Degree C4
System Designed Service Life 15 Years (with RTE Degradation)
Category: Tag:

Description

BATTERY PARAMETERS Enertex Power Link 344
Battery Configuration 345S1P
Battery Nominal Voltage / Capacity 1104V/314A
Battery Energy 344KWh
Cell Type / C-Rate Lithium Ferro Phosphate (LFP) Prismatic Type @ 0.5C
Cell Nominal Voltage / Capacity 3.2V / 314Ah
Depth of Discharge (DoD) 95%
DC Operating Voltage Range 930V to 1250 V
Battery Cycle Life > 8,000 cycles
Maximum Charge / Discharge current 140A
Battery Dimension (L*W*H) in mm 1300mm x1300mm x2365mm
Thermal Management Advance Intelligent Liquid Cooling
Operating Temperature Range- Charging 0°C to 50°C (<85% RH) – Above 45°C Derating
Operating Temperature Range- Discharging -20°C to 60°C (<85% RH) – Above 45°C Derating
Working Altitude <2000mtr
Weight (Tons) <4T



Certifications
Battery Cell IEC 62619,
Battery Pack UN 38.3
Battery Rack EN 62477 – 1, IEC 63056
System EN IEC 61000-6-2/4
