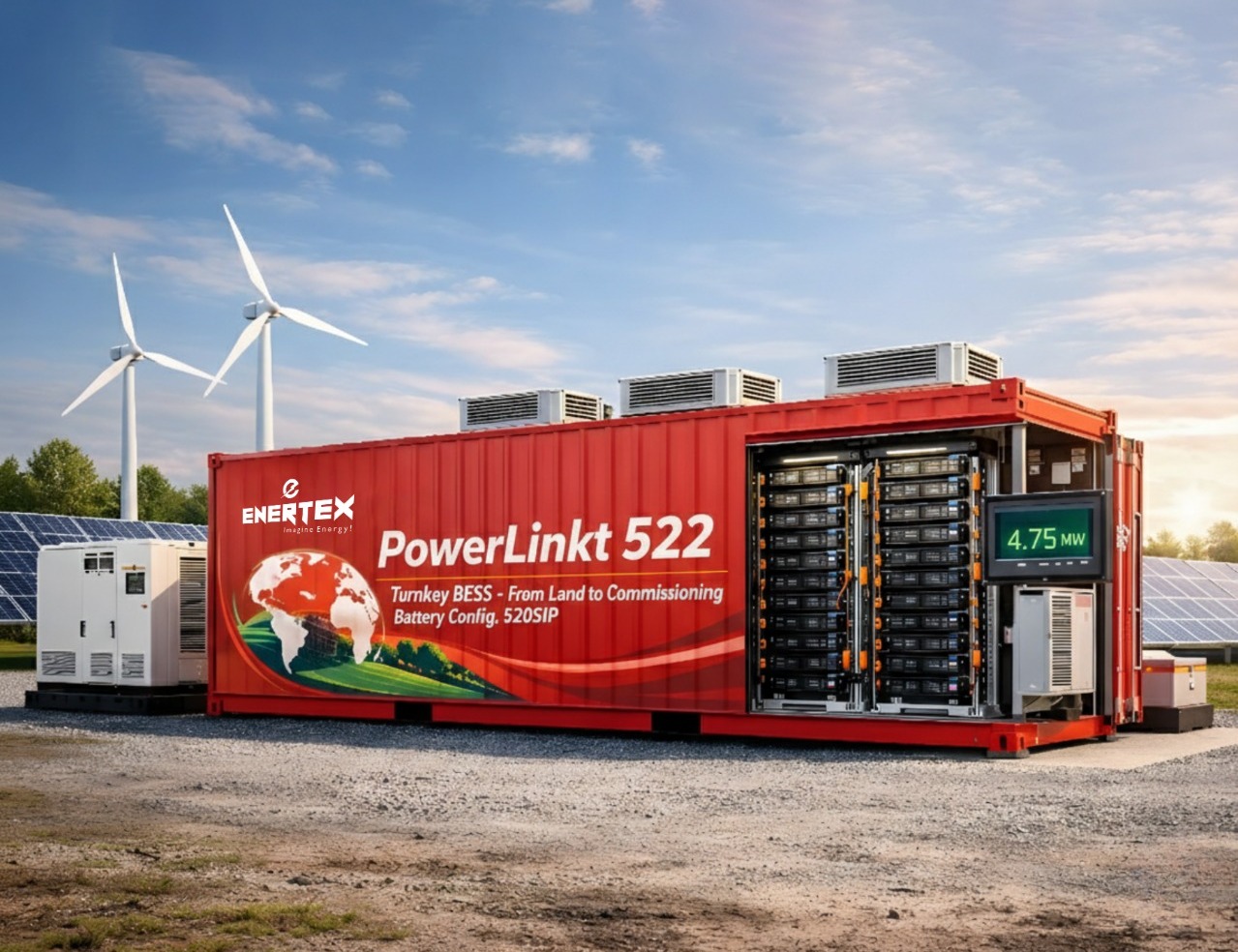

Enertex PowerLink 522

Enertex PowerLink 522

Power Link 522 is a high-capacity energy storage solution designed for large-scale commercial and industrial energy applications. Built with advanced lithium battery technology and an intelligent energy management system, it delivers reliable power performance, enhanced operational safety, and extended service life. Engineered for efficiency, durability, and scalability, Power Link 522 enables optimized energy utilization, stable power output, and seamless integration with modern energy infrastructure.



SPECIAL BATTERY PARAMETERS
Communication Interface RS485/ CAN / ETH/ Dry Contact
Control & Communication SCADA for Central control & monitoring Communication: Standard industrial protocols
Fire Suppression System Temperature & Smoke Detector, Aerosol, Water Fire Interface
Protection Class (IEC 60529) IP55
Anti-Corrosion Degree C4
System Designed Service Life 10 Years (with RTE degradation)
Category: Tag:

Description

BATTERY PARAMETERS Enertex PowerLink 522
Battery Configuration 520S1P
Battery Nominal Voltage / Capacity 1664V/314Ah
Battery Energy 432224
Cell Type / C-Rate Lithium Ferro Phosphate (LFP) Prismatic Type @ 0.5C
Cell Nominal Voltage / Capacity 3.2V / 314Ah
Depth of Discharge (DoD) 0.95
DC Operating Voltage Range 1400 V to
Battery Cycle Life 0.>10000
Maximum Charge / Discharge current 1350 A
Battery Dimension (L*W*H) in mm 1450mm*1350mm*2400mm
Thermal Management Advance Intelligent Liquid Cooling
Operating Temperature Range- Charging 0°C to 50°C (<85% RH) – Above 45°C Derating
Operating Temperature Range- Discharging -20°C to 60°C (<85% RH) – Above 45°C Derating
Working Altitude <2000 mtr
Weight (Tons) <3T



Certifications
Battery Cell IEC 62619,
Battery Pack UN 38.3
Battery Rack EN 62477 – 1, IEC 63056
System EN IEC 61000-6-2/4
