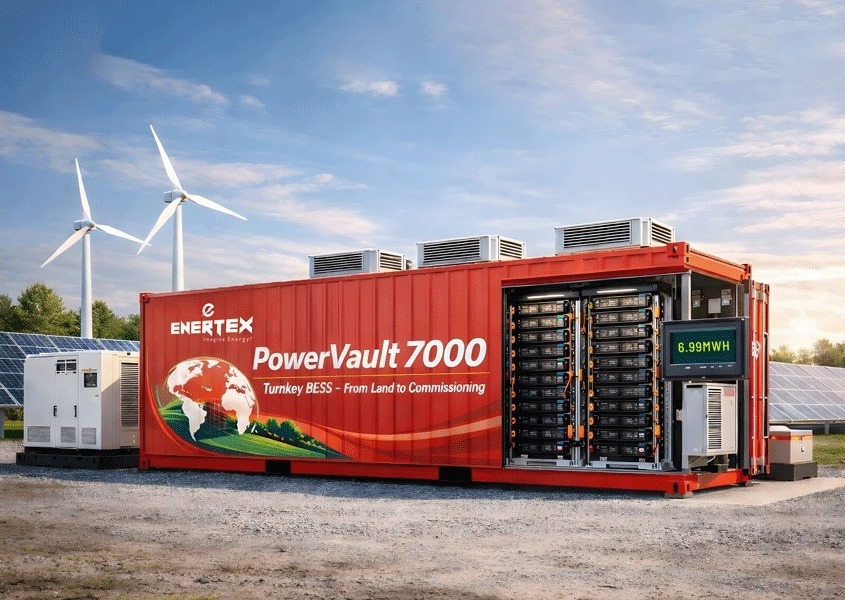

Enertex PowerVault 7000

Enertex PowerVault 7000

The 7000 kWh (7.0 MWh) Battery Energy Storage System is a containerized energy solution designed for medium-scale commercial and industrial applications. Engineered with advanced lithium battery technology and intelligent energy management systems, it delivers consistent performance, operational safety, and long service life.



SPECIAL BATTERY PARAMETERS
Communication Interface Modbus TCP/IP, CAN, RS485, Ethernet, IoT
Control & Communication SCADA for Central control & monitoring Communication: Standard industrial protocols
Fire Suppresion System Detectors: Flammable Gas, Smoke, Heat, Temperature, CO ; Alarms (3 Levels) ; Ventilation System, Sprinkler System ; Madatory Aerosol ; All above manual and automatic switching
Protection Class (IEC 60529) IP55
Anti-Corrosion Degree C4
System Designed Service Life 15 Years (with RTE Degradation)
Category: Tag:

Description

BATTERY PARAMETERS Enertex PowerVault 7000
Battery Configuration 408S9P
Battery Nominal Voltage / Capacity 1305.6V / 5283Ah
Battery Energy 6897.485 kWh / 6.897 MWh
Cell Type / C-Rate Lithium Ferro Phosphate (LFP) Prismatic Type @ 0.5C
Cell Nominal Voltage / Capacity 3.2V / 587Ah
Depth of Discharge (DoD) 95%
DC Operating Voltage Range 1101.6 V to 1489.2 V
Battery Cycle Life > 10000 Cycles
Maximum Charge / Discharge current 3440 A
Battery Dimension (L*W*H) in mm 6058*2438*2896mm
Thermal Management Advance Intelligent Liquid Cooling
Operating Temperature Range- Charging 0°C to 50°C (<85% RH) – Above 45°C Derating
Operating Temperature Range- Discharging -20°C to 60°C (<85% RH) – Above 45°C Derating
Working Altitude < 4000mtr
Weight (Tons) 55.0 T



Certifications
Battery Cell IEC62619,UL1973,UL9540A
Battery Pack IEC60730-1, UN38.3
UL1973 UL9540A UL 60730-1
Battery Rack IEC62619, IEC 60730-1, IEC 63056, IEC62477-1 UL1973, UL 9540A, UL 60730-1
System IEC 62477-1, IEC 60730-1
EN IEC 61000-6-2/4, UN38.3
UN3536, UL9540, UL 60730-1
